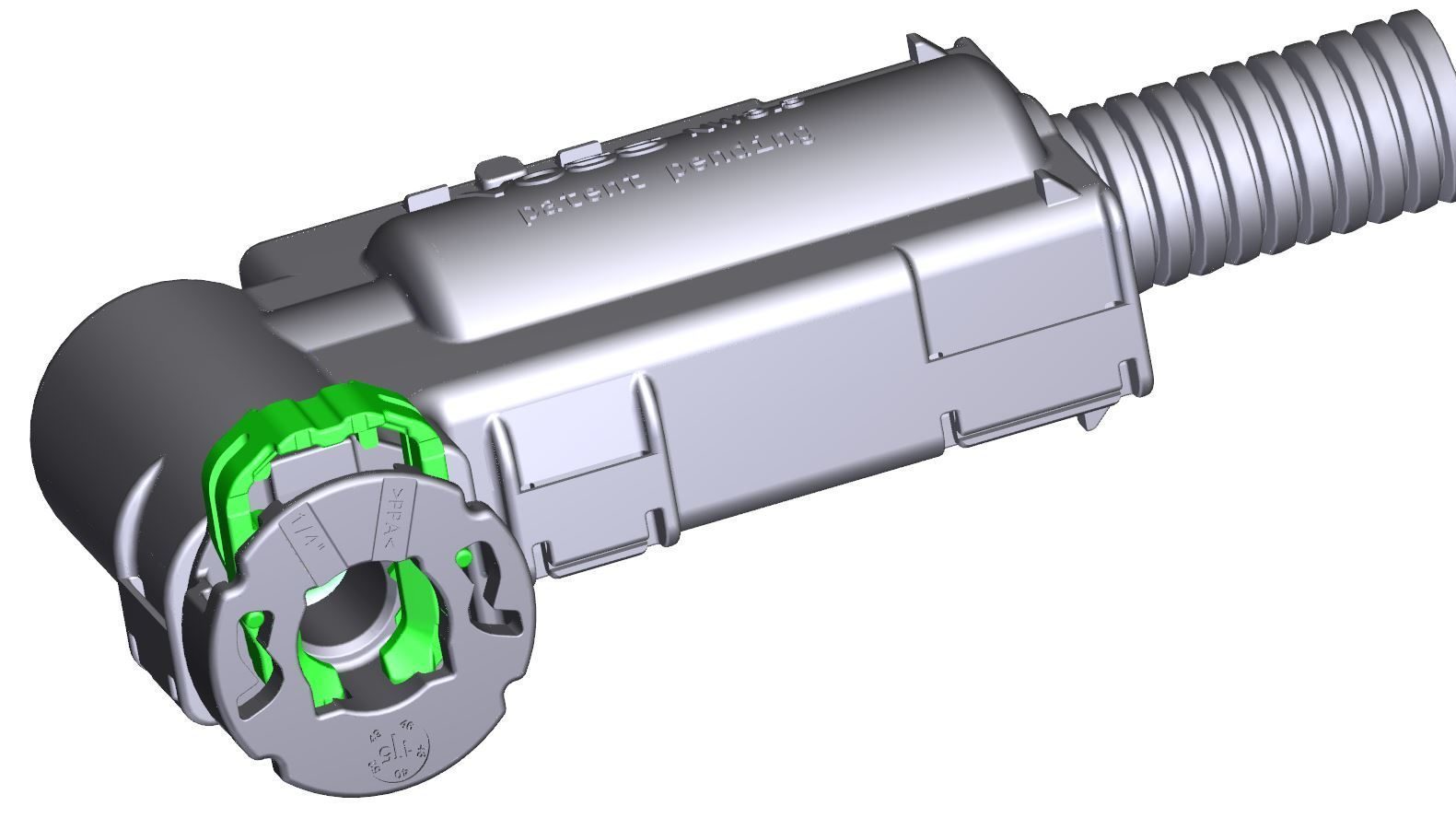

241 NSL elektrisch

241N-SL Heated

The electrically heated VOSS Quick Connect System 241N and 241N-SL variant with secondary lock provides for a safe and efficient thawing performance in SCR and water injection systems.

  • Electrically heated plastic couplings
  • Connection of electrically heated plastic tubes and hoses
  • Connection to plastic tubes by laser welding or fir-tree system
  • Optimized handling of the release mechanism
  • Customer-specific SAE connection profiles available upon request
  • Secondary lock (SL) as additional visual connection indicator
  • For 12 and 24 volt systems, also for PWM control
  • Temperature range -40°C to +120°C, to +160°C after consultation with VOSS
  • Operating pressure max. 12 bar
  • Integration of sensors

Couplings of quick connect system 241N for laser-welded tube connection are only available assembled with tube. Couplings with fir-tree profile for plastic tubes or hoses are available as individual components by request.
