All Quick Connectors

Quick Connectors

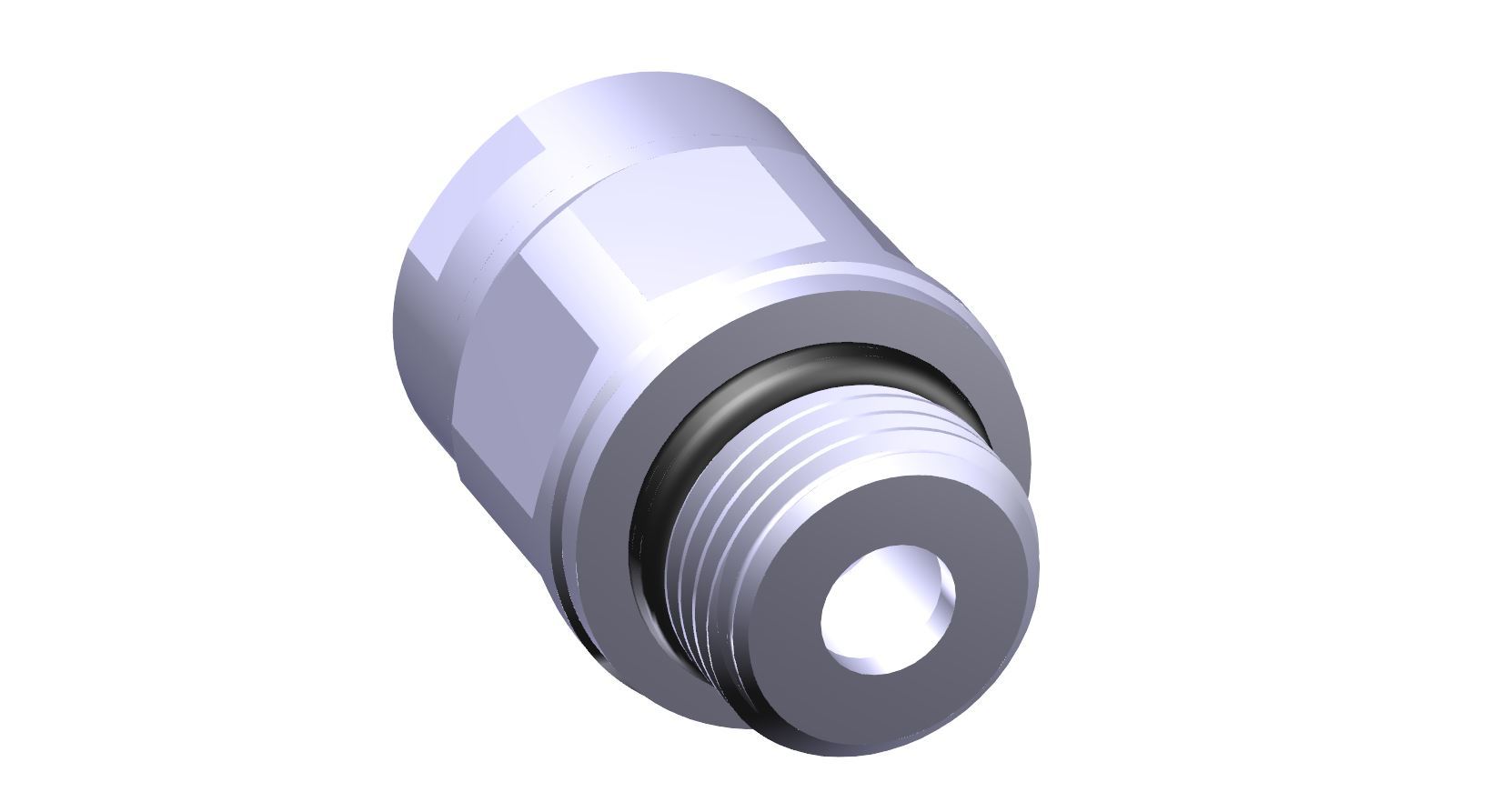

203 N

203N

VOSS Quick Connect system 203N enables quick and safe assembly of
plastic tubes in air suspension systems.

  • Direct push-in system made of aluminum
  • Low system height
  • Easy and safe assembly
  • Simplified handling
  • For ports acc. to VOSS standard
  • Nominal sizes 4 and 6
  • Temperature range -40°C to +100°C, 250h at +120°C
  • Operating pressure max. 22 bar, in compliance with the application limit
    of the plastic tube acc. to DIN 73378
